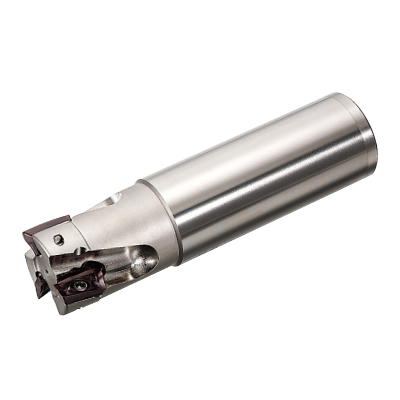

APX4000UR162FA16SB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517641

ANSI

APX4000UR162FA16SB

ISO

APX4000UR162FA16SB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

16

Regular price $378.27 USD
Regular price Sale price $378.27 USD
Sale

EDP

517641

ANSI

APX4000UR162FA16SB

ISO

APX4000UR162FA16SB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

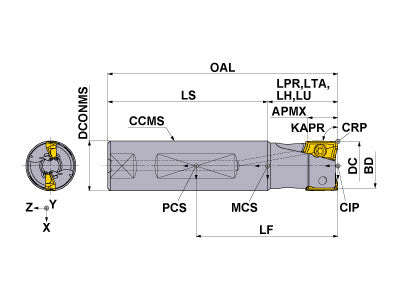

  • Drawings
  • Technical Information
APX4000UR162FA16SB
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
2.781
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.904
APX4000UR162FA16SB

Unit: inch

DC
1
LF
2.781
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.904

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4 389044 TPS4
inventory mark
$3.36
TIP15W 410544 TIP15W
inventory mark
$25.07
MK1KS 291805 MK1KS
inventory mark
$4.79
