diaedge
APX4000UR203FA20SB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517667

ANSI

APX4000UR203FA20SB

ISO

APX4000UR203FA20SB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

5

Regular price $424.44 USD
Regular price Sale price $424.44 USD
Sale

EDP

517667

ANSI

APX4000UR203FA20SB

ISO

APX4000UR203FA20SB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

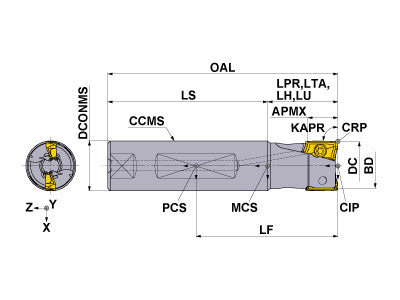

  • Drawings
  • Technical Information
APX4000UR203FA20SB
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
5
APMX
0.591
LH
1.75
OAL
5
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
7
RPMX
9500
GAMF
23
GAMP
17
WT
1.5
APX4000UR203FA20SB

Unit: inch

DC
1.25
LF
5
APMX
0.591
LH
1.75
OAL
5
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
7
RPMX
9500
GAMF
23
GAMP
17
WT
1.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$22.13
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS4 389044 TPS4
inventory mark
$2.96
