diaedge

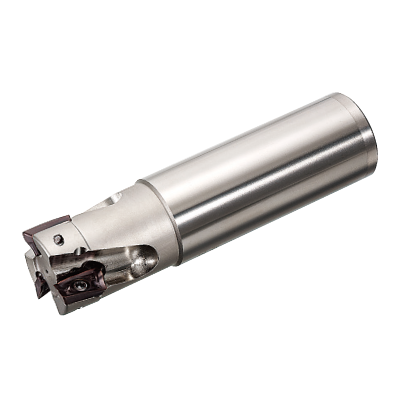

APX4000UR243SA24LB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517721

ANSI

APX4000UR243SA24LB

ISO

APX4000UR243SA24LB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

10

Regular price $419.47 USD
Regular price Sale price $419.47 USD
Sale

EDP

517721

ANSI

APX4000UR243SA24LB

ISO

APX4000UR243SA24LB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

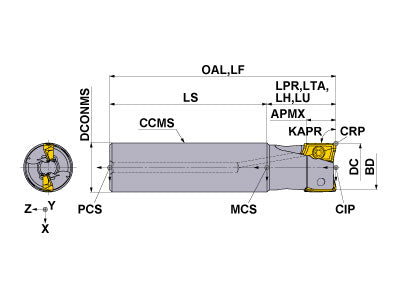

  • Drawings
  • Technical Information
APX4000UR243SA24LB
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.5
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
4.3
APX4000UR243SA24LB

Unit: inch

DC
1.5
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.5
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
4.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS43 405155 TPS43
inventory mark
$2.74
TIP15W 410544 TIP15W
inventory mark
$20.49
