diaedge

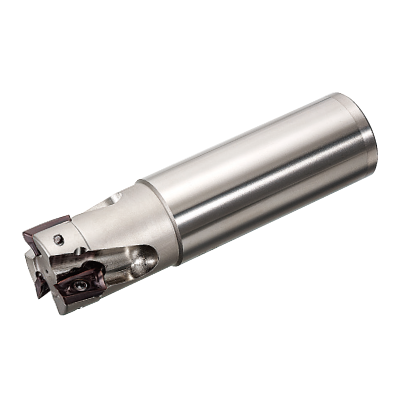

APX4000UR244SA24LB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517739

ANSI

APX4000UR244SA24LB

ISO

APX4000UR244SA24LB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

9

Regular price $487.76 USD
Regular price Sale price $487.76 USD
Sale

EDP

517739

ANSI

APX4000UR244SA24LB

ISO

APX4000UR244SA24LB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

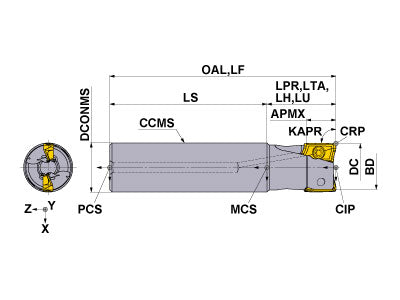

  • Drawings
  • Technical Information
APX4000UR244SA24LB
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.5
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
4.3
APX4000UR244SA24LB

Unit: inch

DC
1.5
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.5
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
4.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS43 405155 TPS43
inventory mark
$2.96
MK1KS 291805 MK1KS
inventory mark
$4.22
TIP15W 410544 TIP15W
inventory mark
$22.13
