diaedge
APX4000UR2505CB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517780

ANSI

APX4000UR2505CB

ISO

APX4000UR2505CB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

6

Regular price $773.49 USD
Regular price Sale price $773.49 USD
Sale

EDP

517780

ANSI

APX4000UR2505CB

ISO

APX4000UR2505CB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

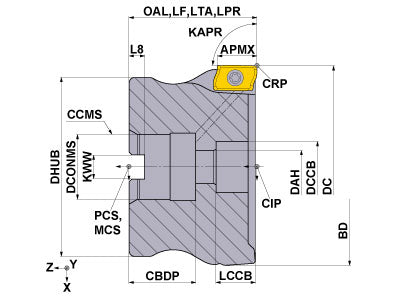

  • Drawings
  • Technical Information
APX4000UR2505CB
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
LF
2
APMX
0.591
OAL
2
DCONMS
1
DCSFMS
2.375
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
1.8
APX4000UR2505CB

Unit: inch

DC
2.5
LF
2
APMX
0.591
OAL
2
DCONMS
1
DCSFMS
2.375
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
1.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$22.13
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS43 405155 TPS43
inventory mark
$2.96
HSCU50014H 243707 HSCU50014H
inventory mark
$27.55
