diaedge

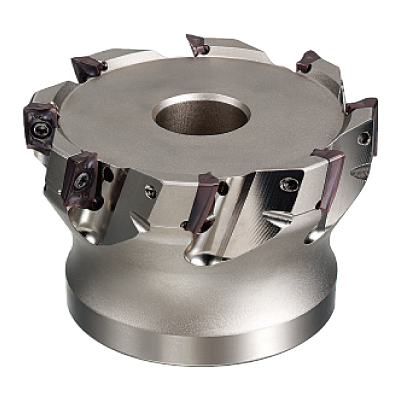

APX4000UR0306DB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

517798

ANSI

APX4000UR0306DB

ISO

APX4000UR0306DB

P (Steel) M (Stainless)
90

14

Regular price $839.00 USD
Regular price Sale price $839.00 USD
Sale

EDP

517798

ANSI

APX4000UR0306DB

ISO

APX4000UR0306DB

P (Steel) M (Stainless)
90
View full details
  • Dimensions
  • Features

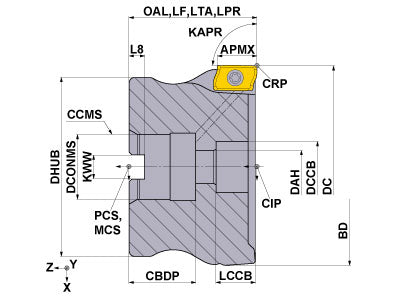

  • Drawings
  • Technical Information
APX4000UR0306DB
Coolant
Internal
Hand
Right

Unit: inch

DC
3
LF
2.5
APMX
0.591
OAL
2.5
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
3.3
APX4000UR0306DB

Unit: inch

DC
3
LF
2.5
APMX
0.591
OAL
2.5
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
3.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$20.49
TPS43 405155 TPS43
inventory mark
$2.74
HSCU62516H 361931 HSCU62516H
inventory mark
$30.84
MK1KS 291805 MK1KS
inventory mark
$3.91
