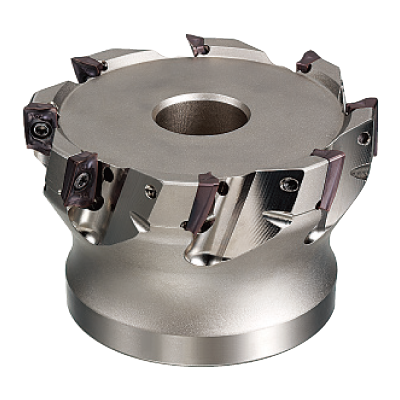

diaedge
APX4000UR0307DB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

517801

ANSI

APX4000UR0307DB

ISO

APX4000UR0307DB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

9

Regular price $949.17 USD
Regular price Sale price $949.17 USD
Sale

EDP

517801

ANSI

APX4000UR0307DB

ISO

APX4000UR0307DB

P (Steel) M (Stainless)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

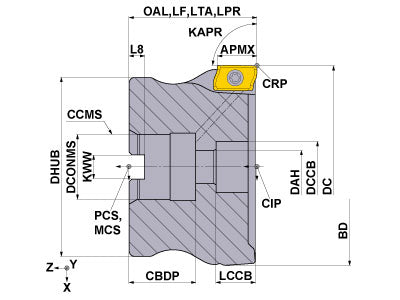

  • Drawings
  • Technical Information
APX4000UR0307DB
Coolant
Internal
Hand
Right

Unit: inch

DC
3
LF
2.5
APMX
0.591
OAL
2.5
DCONMS
1.25
DCSFMS
2.874
NOF
7
ZEFF
7
ZEFP
7
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
3.3
APX4000UR0307DB

Unit: inch

DC
3
LF
2.5
APMX
0.591
OAL
2.5
DCONMS
1.25
DCSFMS
2.874
NOF
7
ZEFF
7
ZEFP
7
KAPR
90
RMPX
2
GAMF
26
GAMP
22
WT
3.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$22.13
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS43 405155 TPS43
inventory mark
$2.96
HSCU62516H 361931 HSCU62516H
inventory mark
$33.31
