diaedge
APX4KUR0209A16A
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

544032

ANSI

ISO

APX4KUR0209A16A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

23

Regular price $1,492.94 USD
Regular price Sale price $1,492.94 USD
Sale

EDP

544032

ANSI

ISO

APX4KUR0209A16A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features

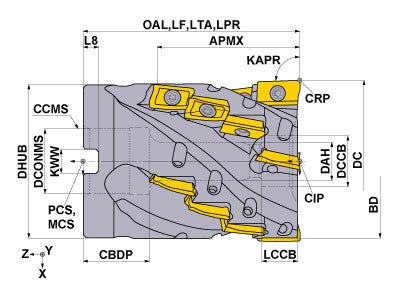

  • Drawings
  • Technical Information
APX4KUR0209A16A
Coolant
Internal
Hand
Right

Unit: inch

DC
2
LF
2.5
APMX
1.65
OAL
2.5
DCONMS
0.75
DCSFMS
1.918
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
GAMF
7
GAMP
12
WT
1.7
APX4KUR0209A16A

Unit: inch

DC
2
LF
2.5
APMX
1.65
OAL
2.5
DCONMS
0.75
DCSFMS
1.918
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
GAMF
7
GAMP
12
WT
1.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$22.13
MK1KS 291805 MK1KS
inventory mark
$4.22
HSCUF37520 544091 HSCUF37520
inventory mark
$12.48
TPS43 405155 TPS43
inventory mark
$2.96
