diaedge
APX4KUR2516CA22A
Skip to product information

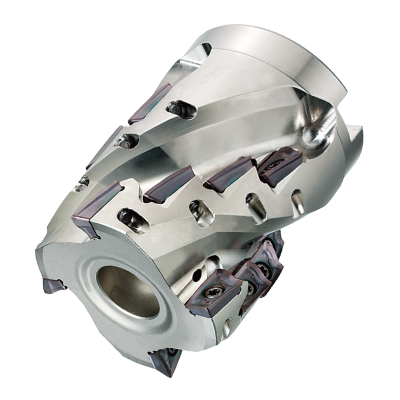

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

544041

ANSI

ISO

APX4KUR2516CA22A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

17

Regular price $1,741.73 USD
Regular price Sale price $1,741.73 USD
Sale

EDP

544041

ANSI

ISO

APX4KUR2516CA22A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features

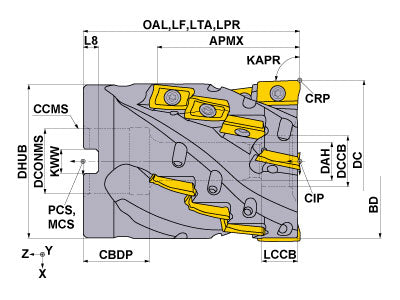

  • Drawings
  • Technical Information
APX4KUR2516CA22A
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
LF
3.5
APMX
2.2
OAL
3.5
DCONMS
1
DCSFMS
2.375
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
GAMF
6
GAMP
12
WT
3.8
APX4KUR2516CA22A

Unit: inch

DC
2.5
LF
3.5
APMX
2.2
OAL
3.5
DCONMS
1
DCSFMS
2.375
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
GAMF
6
GAMP
12
WT
3.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSCUF50028 544121 HSCUF50028
inventory mark
$14.01
TIP15W 410544 TIP15W
inventory mark
$22.13
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS43 405155 TPS43
inventory mark
$2.96
