diaedge
APX4KUR3212WA32S35A
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

544075

ANSI

APX4KUR3212WA32S35A

ISO

APX4KUR3212WA32S35A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

11

Regular price $1,551.79 USD
Regular price Sale price $1,551.79 USD
Sale

EDP

544075

ANSI

APX4KUR3212WA32S35A

ISO

APX4KUR3212WA32S35A

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features

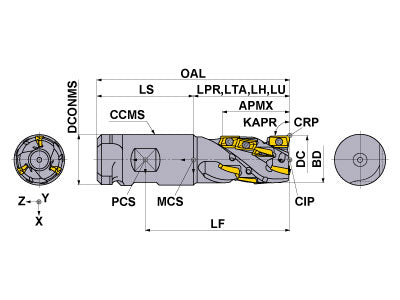

  • Drawings
  • Technical Information
APX4KUR3212WA32S35A
Coolant
Internal
Hand
Right

Unit: inch

DC
2
LF
6.5
APMX
2.2
LH
3.25
OAL
6.5
DCONMS
2
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
6000
GAMF
7
GAMP
12
WT
5.3
APX4KUR3212WA32S35A

Unit: inch

DC
2
LF
6.5
APMX
2.2
LH
3.25
OAL
6.5
DCONMS
2
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
6000
GAMF
7
GAMP
12
WT
5.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.22
TIP15W 410544 TIP15W
inventory mark
$22.13
TPS43 405155 TPS43
inventory mark
$2.96
