IMX10-G12L060S
The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
5
Price
Regular price
$114.66 USD
Regular price
Sale price
$114.66 USD
Unit price
per
- Dimensions

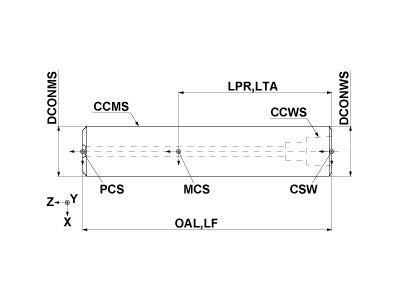

- Drawings
- Technical Information
Coolant
Internal
Unit: mm
OAL
60
DCONMS
12
Unit: mm
OAL
60
DCONMS
12
Related Products
= in Stock
= Out of Stock
| Image | Series | Cutting Diameter | Functional Length | Shank Diameter | Number of Cutting Edge | Coolant | ||
|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | |||||
 | iMX_B3FV | 10.0 - 20.0 | 16 - 30 | 9.7 - 19.5 | 3 | External | ||
 | iMX_B4HV | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | External |
 | iMX_B4HV_E | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | Internal |
 | iMX_B4WH_S | 12.0 - 20.0 | 0.5000 - 0.7500 | 0.693 - 24.7 | 9.7 - 15.5 | 0.3819 - 0.6055 | 4 | Internal |
 | iMX_B6HV | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 6 | External |
 | iMX_C3A | 10.0 - 28.0 | 0.3750 - 1.0000 | 0.63 - 41.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 3 | External |
 | iMX_C4FD_C | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | Internal |
 | iMX_C4FV | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | External |
 | iMX_C4HV | 10.0 - 28.0 | 0.3750 - 1.0000 | 0.63 - 50 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | External |
 | iMX_C4HV_S | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | Internal |
 | iMX_C6HV | 10.0 - 12.0 | 0.3750 - 0.5000 | 0.63 - 19 | 9.7 - 11.7 | 0.3630 - 0.4882 | 6 | External |
 | iMX_C6HV_C | 10.0 - 25.0 | 16 - 37.5 | 9.7 - 24.5 | 6 | Internal | ||
 | iMX_C8T_C | 8.0 | 16 | 9.7 | 8 | Internal | ||
 | iMX_CH3L | 10.0 - 20.0 | 0.3750 - 0.7500 | 0.63 - 30 | 9.7 - 19.5 | 0.3630 - 0.7299 | 3 | External |
 | iMX_R4F | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | External |
 | iMX_RC4F_C | 10.0 - 20.0 | 16 - 30 | 9.7 - 19.5 | 4 | Internal | ||
 | iMX_S3A | 10.0 - 28.0 | 0.3750 - 1.0000 | 0.63 - 41.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 3 | External |
 | iMX_S3HV | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 3 | External |
 | iMX_S4HV | 10.0 - 32.0 | 0.3750 - 1.0000 | 0.63 - 50 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | External |
 | iMX_S4HV_S | 10.0 - 25.0 | 0.3750 - 1.0000 | 0.63 - 37.5 | 9.7 - 24.5 | 0.3630 - 0.9799 | 4 | Internal |
Spareparts
= in Stock
= Out of Stock
| Image | EDP | Order Number | Stock | Price | |
|---|---|---|---|---|---|
|
807031 | IMX10-WR |
|
$23.95
|
|
